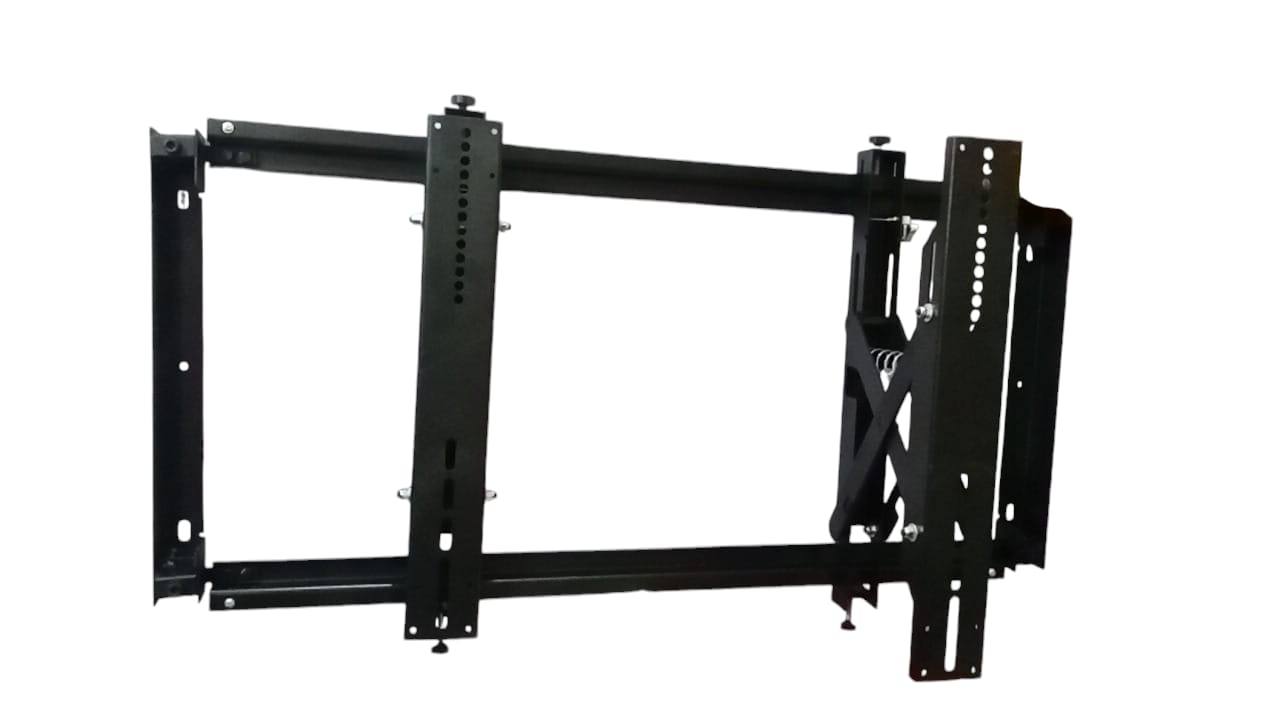

Vtech-Push Pull Video Wall Mount for 37 to 75 inch Display Model:VTM-VWM-64T03

Description

The Vtech Push Pull Video Wall Mount is designed to accommodate displays ranging from 37 to 75 inches, providing a sturdy and flexible mounting solution for video walls. It features easy installation and adjustment, allowing for precise alignment and positioning of screens. The mount is engineered for durability and can support significant weight, making it suitable for commercial and professional use in settings like conference rooms, retail displays, and event spaces. Its push-pull mechanism enables effortless screen access for maintenance or adjustments, enhancing usability and functionality.

Basic Overview

The VTM-VWM-64T03 is a video wall mount by VTech AV Systems, designed to support displays sized 37″ to 75″. It is a push-pull mount, meaning the screen can be pulled away from the wall (for access, adjustment, or servicing), and pushed back when not needed. It’s meant for video wall applications or for installations where multiple displays need to be aligned precisely, serviced occasionally, or moved for maintenance. (VTech AV Systems)

---

Key Specifications & Features

From available sources plus what is typical for this kind of mount:

Specification	Detail
Screen Size Range	37-75 inches. (VTech AV Systems)
Weight Capacity	Up to about 50 kg per screen. Confirm for your specific display model. (Flipkart)
VESA Mounting Pattern	Supports standard VESA configurations — example: 600×400 mm pattern is listed in Flipkart listing. (Flipkart)
Material	Strong metal construction (iron or steel) to support the push/pull mechanised arm and weight. (Flipkart)
Push-Pull Mechanism	Slides out from wall for better access; likely with arms or rails that allow movement without compromising alignment. Helps in video walls where alignment and cable access matter. (VTech AV Systems)
Installation Dimensions	Approximate dimensions in one listing: length ~97 cm, width ~29 cm, height around 8 cm for the mount bracket base. Weight of the mount itself listed ~12 kg. (Flipkart)

---

Advantages & Use Cases

Some situations where VTM-VWM-64T03 is especially useful:

1. Video Wall Setups
   In setups where multiple displays are installed, precise alignment and servicing are very important. A push-pull mount helps move panels in/out without full dismounting.
2. Maintenance / Cable Access
   Ability to pull the display forward allows easy access to ports, cables, connectors behind the display. Useful for installations in which connectors are at back and need occasional access.
3. Flexibility During Setup
   Aligning multiple large panels often requires small adjustments; pull-out arms make leveling and aligning easier.
4. Space Management
   When not pulled out, display lies flush or close to wall to maintain a clean profile. If you need to access, simply pull out. Good for fixed walls with occasional servicing.
5. Strong Build for Large Displays
   Since it supports up to 75″ and loads of ~50 kg, it is built to handle large, heavy panels while maintaining stability.

---

Things to Verify & Limitations

To ensure safe & satisfactory installation, check:

• Exact Load Rating
  Even though many units are listed as 50 kg capacity, individual display models may be heavier. Always verify the actual weight of your display and whether this mount supports it with margin.
• VESA Compatibility
  Check that your display’s VESA hole spacing (e.g. 600×400 mm or whatever your display has) is supported by the mount. If it’s non-standard, adapters or different model might be needed.
• Wall / Structural Support
  Because pull-out arms introduce more leverage when extended, wall mounting must be into strong structure (studs, concrete, masonry) with appropriate anchors/bolts.
• Clearance for Extension
  When the display is pulled out, ensure there’s enough space (behind and around) so cables aren’t pinched, and so display doesn’t hit anything. Also ensure when pushed in, it doesn’t collide with wall protrusions.
• Locking or Securing Mechanism
  For safety and stability, the pull-out arms or slides should have locking or detent mechanisms or friction so that display doesn’t drift or sag or retract unexpectedly.
• Cable Management
  Cables need to be long enough and routed flexibly to accommodate push-pull motion. Recognize possible strain points and plan accordingly.
• Installation Complexity
  Likely a heavy and bulky mount; installation might require multiple persons. Follow instructions, use proper tools.

---

Pricing & Availability

• Listed price on VTech site: US$4,500.00 (may vary) for VTM-VWM-64T03. (VTech AV Systems)
• Some local listings (Flipkart etc.) provide specification summary and dimensions. (Flipkart)

---

Summary

The Vtech VTM-VWM-64T03 Push-Pull Video Wall Mount (37-75″) is a solid choice if you have large displays that need occasional servicing, precise alignment, and clean appearance when retracted. It combines strong load capacity, pull-out capability, and compatibility with standard VESA systems.
